The
LTC300 is a discontinued product
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
|
The BOSâNOVA LTC Series of thin client terminals provides easily configurable solution to remote desktop computing. Whether the application is data entry, point of sale, training, ISP's, or web kiosks, these thin clients provide a highly cost-effective access to Windows desktop applications residing on a Microsoft Windows NT/2000 Terminal Server. Central configuration and user management drastically reduces cost of ownership, while the versatility of the hardware platform and customization capabilities increase user productivity. |
|
 |
|

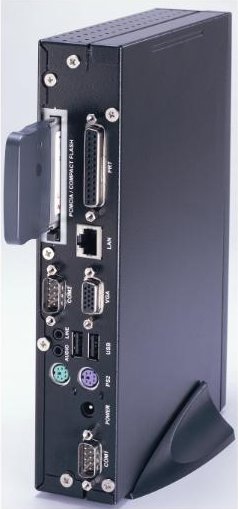

BOSâNOVA LTC-600 (left) BOSâNOVA LTC-300 (right) |
||
Advantages
|
|
|
|
|
|
|
|
|
Click here for more information on the BOSaNOVA LTC Thin Client Family
Versatile Hardware Platform with High-speed Processing
|
A versatile combination of features provides the flexibility to support virtually any application with the BOSâNOVA LTC Series. The entry-level model BOSâNOVA LTC-300 sports an industry-standard 300 MHz CPU, while the BOSâNOVA LTC-600 practically doubles that speed to provide top performance, even when browsing the Web. This is especially important in a thin client environment where, unlike Windows environments, Web pages are not cached and need to be reloaded each time, over the LAN. |
|
Centralized Management
As with any Windows Server product, the system administrator manages the accounts the Thin Client Terminals use. A major benefit is that since all applications are run from the server, there is no local installation or maintenance of software applications at the client workstation. Furthermore, since all user data and files are resident on the server, central backup is possible, thereby freeing the user of this task.
Enterprise Class Remote Administration
|
The BOSâNOVA LTC Series of thin client terminals is simple to configure either locally or remotely using the Remote Terminal Administrator (RTA), which enables the following tasks:
|
Click here or on the image above for an enlarged view of the BOSaNOVA LTC Setup Screen
Windows & Citrix Connectivity
All of the BOSâNOVA terminals provide connections to Windows Terminal Servers and Citrix servers using the Remote Desktop Protocol (RDP) or Independent Computing Architecture (ICA) client software. RDP connects to Windows NT 4.0 Terminal Server Edition (TSE) or Windows 2000 Server, while ICA connects to TSE or Windows 2000 servers with Citrix Metaframe extensions, including Metaframe XP.
Terminal Emulation
The BOSâNOVA LTC Series includes embedded
TN5250e and TN3270e based terminal emulation software for up to five sessions in connection to IBM iSeries (AS/400) and zSeries (S/390) systems, employing the best fonts in the industry.
It also supports a full-featured 122-key keyboard*, enabling efficient work with host
applications without the need for operator retraining. (Click
here or on image at right for an enlarged view of the LTC desktop)
* Optional
Benefits of the Linux Platform
While the desktop has a Windows 2000/XP look and feel, both the BOSâNOVA LTC-300 and BOSâNOVA LTC-600 models are based on Linux. This versatile and user-friendly operating system provides additional capabilities not available with Windows-based terminals running Windows CE, such as:
-
Scaleable Windows
-
Java Virtual Machine
-
Embedded Netscape browser with JVM that can be used as a Domino/Notes client
-
X Windows connectivity to other Linux and Unix servers
-
Seamless access to applications running on Unix based servers
In addition, the XPDF reader Plug In provides Adobe Acrobat Reader functionality, and 32 MB DOM allows localized customization of the client desktop and applications.
Click here for more information on the BOSaNOVA LTC Thin Client Family
Technical Specifications
|
Model | BOSâNOVA LTC-300 | BOSâNOVA LTC-600 |
|
Processor | ||
|
CPU |
NS Geode 300Mhz with 16 KB unified Cache |
VIA Eden 533Mhz |
|
Memory | ||
|
RAM |
One SDRAM 168pin DIMM 64MB |
One SDRAM 144pin DIMM 128MB |
|
ROM |
One Disk on Memory Module 32MB (DOM) |
One Disk on Memory Module 32MB (DOM) |
|
Standard Interface |
||
|
VGA |
Up to 1024x768, 16-bit high color, VESA monitor support with DDC |
Up to 1024x768, 32-bit true color, VESA monitor support with DDC |
|
LAN |
RJ45, 10/100BaseT |
RJ45, 10/100BaseT |
|
Keyboard & Mouse |
PS2 Type |
PS2 Type |
|
Serial |
RS232, 9-Pin DSUB COM1, COM2 |
RS232, 9-Pin DSUB COM1, COM2 |
|
Parallel |
25-Pin DSUB |
25-Pin DSUB |
|
USB Port |
2 USB Ports |
2 USB Ports |
|
Audio Line Out |
1/8" mini, full 16-bit stereo, 44KHz sample rate |
1/8" mini, full 18-bit stereo, 44KHz sample rate |
|
Optional Devices |
None |
Smart Card Reader*; PCMCIA Slot* |
|
Power System | ||
|
Connector |
2 Pin Jack 5V DC |
2 Pin Jack 5V DC |
|
AC/DC Adapter |
Input AC 100/240 Volt, 50~60Hz. Output 5VDC, 4A. |
Input AC 100/240 Volt, 50~60Hz. Output 5VDC, 4A. |
|
Physical & Mechanical | ||
|
Dimensions |
9.14"(H) x 1.66"(W) x 9.46"(D) |
8.67"(H) x 1.77"(W) x 6.11"(D) |
|
Client Side Software | ||
|
OS System |
Linux Kernel Version 2.4.7-10 |
Linux Kernel Version 2.4.7-10 |
|
Terminal Emulation |
5250 and 3270 Emulator |
5250 and 3270 Emulator |
|
Local Browser |
NetScape 4.78 with JVM, RealPlayer, XPDF Reader, Opera*, Mozilla* |
NetScape 4.78 with JVM, RealPlayer, XPDF Reader, Opera*, Mozilla* |
|
Connectivity |
Remote Desktop Protocol (RDP), Citrix Independent Computing Architecture (ICA) |
Remote Desktop Protocol (RDP), Citrix Independent Computing Architecture (ICA) |
|
Local Configuration |
Terminal/Session Configuration |
Terminal/Session Configuration |
|
Server Side Software | ||
|
OS System Support |
Microsoft Windows 2000 Server, Microsoft Windows NT Terminal Server Edition, Citrix MetaFrame, Citrix Winframe |
Microsoft Windows 2000 Server, Microsoft Windows NT Terminal Server Edition, Citrix MetaFrame, Citrix Winframe |
|
Management Tool |
Remote Administrator, Wake on LAN |
Remote Administrator, Wake on LAN |
*Optional
Click here for more information on the BOSaNOVA LTC Thin Client Family
Ordering Information
| ITEM NO. | Description |
| BOS7600 | BOSâNOVA LTC-600 5250/3270, embedded Netscape browser with JVM, RDP & ICA, 533 Mhz. Processor |
| BOS7300 | BOSâNOVA LTC-300 5250/3270, embedded Netscape browser with JVM, RDP & ICA, 300 Mhz. Processor |
| BOS8001 | 64 MB DOM upgrade (includes Mozilla Web browser) |
| BOS8002 | 128 MB DOM upgrade (required for JVM support with the Mozilla Web browser) |
| BOS8021 | PCMCIA (BOSâNOVA LTC-600 model only) |
| BOS8022 | 802.11b and 802.11g wireless communication support |
| BOS8101 | Opera Web browser with JVM support |
| BOS8121 | Smart Card Reader |
| BOS8122 | 122-Key Keyboard |
