BOSâNOVA® WTC-350
Windows CE.NET Thin Client Terminal
iSeries, AS/400 and Mainframe

This product has been replaced with the RBT-320 Thin Client Terminal

Overview

Powered by Microsoft Windows CE.Net, the BOSaNOVA WTC-350 provides cost-effective and secure access to applications residing on an iSeries or pSeries host, and/or Microsoft Windows, Unix, or Citrix servers.

The unit is small and efficiently designed; it can be used as a base for the the monitor or mounted vertically using the factory-supplied stand.

The BOSaNOVA WTC-350 includes a powerful suite of connectivity clients as well as viewing support for standard office file formats such as PDF, word processing, spreadsheet, and presentation applications.

Click here for more information on the BOSaNOVA WTC-350 Thin Client Terminal

Advantages

bullet

Zero footprint freeing up valuable desktop space

bullet

Fast processor gives this entry-level Thin Client the benefit of excellent performance in an economical solution

bullet

Windows CE.Net operating system

bullet

Embedded GUI TN5250e/TN3270e terminal emulation
display (up to four sessions) and SCS printing, as well as the following ASCII emulations: VT100, VT220, VT400, SCO, Xterm R6, and Telnet with SSH

bullet

Supports connection t o Windows Terminal Servers and Citrix servers using the Remote Desktop Protocol (RDP), Citrix Independent Computing Architecture (ICA) client software, Citrix Web Client , Tarantella and VNC Client

bullet

Automatic 5250 session termination on power-down, preventing “session in use” problems normally associated with Ethernet terminals

bullet

Supports touch screen, USB printing, and dial-up connection

bullet

Contains full array of embedded applications such as Word, Excel and PowerPoint viewers; POP-3 e-mail; media player; and a PDF reader

bullet

GUI setup and centralized configuration, management, and security via the BOSaNOVA Remote Management utility for low TCO ( Total Cost of Ownership)

Click here for more information on the  BOSaNOVA WTC-350 Thin Client Terminal

Versatile Hardware Platform with
High-speed Processing

A versatile combination of features provides the flexibility to support virtually any application with the BOSâNOVA WTC-350. The device has 64MB of RAM 16 MB of Flash Disk. It is equipped with support for SVGA display (up to 1280x1024, 24-bit true color, VESA monitor support with DDC), and has one parallel printer port, two serial ports, two USB ports, keyboard port, mouse port, 10/100 base-T Ethernet interface, and an audio out line. It optionally supports a full-featured 122-key keyboard designed for use with midrange applications (with or without magnetic strip reader capabilities).

Centralized Management

As with any Windows Server product, the system administrator manages the accounts the Thin Client Terminals use. A major benefit is that since all applications are run from the server, there is no local installation or maintenance of software applications at the client workstation. Furthermore, since all user data and files are resident on the server, central backup is possible, thereby freeing the user of this task.

Rear view of the BOSâNOVA WTC-350, which supports one parallel printer port, two serial ports, two USB ports, keyboard port, mouse port, 10/100 base-T Ethernet interface, and an audio out line.



Windows & Citrix Connectivity


All of the BOSâNOVA terminals provide connections to Windows Terminal Servers and Citrix servers using the Remote Desktop Protocol (RDP) or Independent Computing Architecture (ICA) client software. RDP connects to Windows NT 4.0 Terminal Server Edition (TSE) or Windows 2000/2003 Server, while ICA connects to TSE or Windows 2000/2003 servers with Citrix Metaframe extensions, including Metaframe XP.

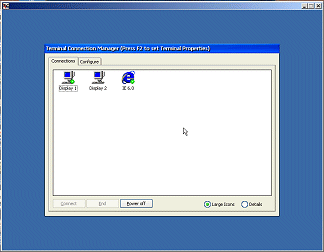

Large icons in the Connection Manager
simplify operation of the terminal.

 Enterprise Class Remote Administration

The BOSâNOVA WTC-350 is simple to configure either locally or remotely using the Remote Terminal Administrator (RTA), which enables the following tasks:
bullet

Complete terminal configuration from a central location, including terminal emulation settings
bullet

User lock-out from configuration changes, keeping the cost of ownership down
bullet

Scheduling of firmware updates
bullet

Shadowing of the user's desktop
bullet

Cloning of user environments
bullet

Control over which applications can be run on a particular terminal

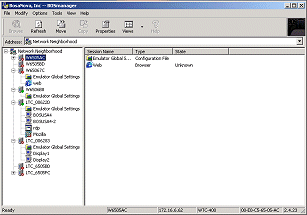

Local or remote configuration of BOSâNOVA WTC-350 terminals is simple using the Remote Terminal Administrator (RTA).

Click here for more information on the  BOSaNOVA WTC-350 Thin Client Terminal

 TN5250e / TN3270e Terminal Emulation



The BOSâNOVA WTC-350 includes embedded TN5250e and TN3270e based terminal emulation software for up to four sessions in connection to IBM iSeries (AS/400) and zSeries (S/390) systems, including SCS printing. It also supports a full-featured 122-key keyboard*, enabling efficient work with host applications.


Embedded TN5250e/TN3270e emulation software
connects up to four sessions on iSeries/zSeries hosts.





Full-Featured 122-key Keyboard

The BOSâNOVA WTC-350 includes support for a full-featured 122-key keyboard*, enabling efficient work with host applications, whether they be Windows Terminal Server or iSeries resident.
Because the BOSâNOVA 122-key keyboard is driverless, it functions seamlessly with any PC, as well as with a thin client. Therefore, for customers with a mixed PC and thin client environment, the BOSâNOVA 122-key keyboard is the ideal keyboard investment.

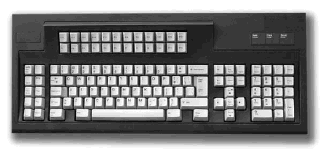

The 122-key keyboard available with the BOSâNOVA
WTC-350 (MSR version pictured) works perfectly
in both Windows Terminal Server and iSeries/zSeries
software environments.

Click here for more information on the  BOSaNOVA WTC-350 Thin Client Terminal

Technical Specifications

Model

BOSâNOVA WTC-350

Processor

CPU

SiS 550 x86 with MMX

Memory

RAM

One SDRAM 168pin DIMM 64MB

ROM

One Disk on Memory Module 16MB (flash)

Standard Interface

VGA

Up to 1280 x 1024, 24-bit high color

LAN

RJ45, 10/100BaseT

Keyboard & Mouse

PS2 Type

Serial

RS232, 9-Pin DSUB COM1, COM2

Parallel

25-Pin DSUB

USB Port

2 USB Ports

Audio Line Out

1/8" mini, full 16-bit stereo, 44KHz sample rate

Optional Devices

None

Power System

Connector

Standard power cord, Input AC 100/240 Volt, 50-60Hz

Physical & Mechanical

Dimensions

W 1 3/4" x L 8 3/4" x H 9 1/2"

Client Side Software

OS System

Windows CE.NET 4.2

Terminal Emulation

GUI TN5250e/TN3270e terminal emulation display and SCS printing

Local Browser

IE 6.0 compact browser with JVM (optional) and Word Viewer; Excel Viewer, PowerPoint Viewer; POP-3 e-mail; VNC Client; PDF Reader; and Citrix NFuse

Connectivity

Remote Desktop Protocol v5.2 (RDP), Citrix Independent Computing Architecture v7.0 (ICA)

Local Configuration

Terminal/Session Configuration, ICA and RDP Clients

Server Side Software

OS System Support

Microsoft Windows 2000/2003 Server, Microsoft Windows NT Terminal Server Edition, Citrix Metaframe, Citrix Winframe

Management Tool

Remote Administrator, Wake on LAN

Warranty

Warranty

3-Year Advanced Exchange

*Optional

Click here for more information on the  BOSaNOVA WTC-350 Thin Client Terminal

Ordering Information

ITEM NO.Description
BOS7220

BOSâNOVA WTC-350 TN5250e/TN3270e, embedded IE browser with RDP & ICA and office apps
BOS8122B

122-Key 5250 or 3270 / PC tactile feedback keyboard

BOS8104B

104-Key PC Keyboard
