BOSaNOVA® WTC-400
Windows CE.NET Thin Client Terminal
iSeries, AS/400 and Mainframe
|
|
|
 |
The Only CE.Net Thin Client with
Multiple Window Display for Browser
(This product has been
replaced with the BOSaNOVA
WTC-550)
Overview
The BOSâNOVA WTC-400, based on the
industry-standard Windows CE.NET platform, provides cost-effective
access to Windows desktop applications residing on a Microsoft
Windows NT/2000/2003 Terminal Server.
Unlike other CE.NET-based thin clients, which support only
full-screen applications, the BOSâNOVA WTC-400 uniquely allows
management of multiple browser windows within a single browser
instance. As a result, even pop-up windows (which typically
require the user to close the new window in order to revert to the
parent window) are no longer a distraction to the standard user's
workflow. This capability, alongside broad application
compatibility and system integration flexibility, vastly improves
the user experience and increases productivity.
Click here for
more information on the
BOSaNOVA WTC-400 Thin Client Terminal
|
The BOSâNOVA WTC-400
supports multiple browser windows for a smoother user work
experience
|
Advantages
 |
Supports
multiple windows in a single browser for a more
user-friendly work environment
|
|
Front view of the
BOSâNOVA WTC-400,
|
|
Embedded
GUI TN5250e/TN3270e terminal emulation display
and SCS printing
|
|
|
Includes
Internet Explorer 6.0 compact browser to access
Web-based applications - with window manager, web mail
icon, and kiosk mode - and optional Java Virtual Machine
(JVM) to support Java-based applications, such as J-WalkTM
and JadvantageTM
|
|
|
Supports
connections to Windows Terminal Servers and Citrix
servers using the Remote Desktop Protocol (RDP),
Citrix NFuse or Independent Computing Architecture (ICA)
client software
|
|
|
Contains
full array of embedded office applications: Word,
Excel and PowerPoint Viewers; POP-3 e-mail; VNC Client;
Tarantella; and PDF reader
|
|
|
Features
large icons in the Connection Manager, and
supports touch screen, 122-key
keyboard, and scrolling
mouse to increase productivity
|
|
|
Centralized
configuration, management, and security via the
BOSâNOVA Remote Manager utility, for low TCO (Total
Cost of Ownership)
|
|
|
Click here for
more information on the
BOSaNOVA WTC-400 Thin Client Terminal
Versatile Hardware Platform with
High-speed Processing
A versatile combination of features provides the flexibility to support
virtually any application with the BOSâNOVA WTC-400. The device has 64MB of RAM
32 MB of Disk on Memory (DOM). It is equipped with support for SVGA display (up
to 1280x1024, 24-bit true color, VESA monitor support with DDC), and has one
parallel printer port, two serial ports, two USB ports, keyboard port, mouse
port, 10/100 base-T Ethernet interface, and an audio out line. It optionally
supports a full-featured 122-key keyboard designed for use with midrange
applications (with or without magnetic strip reader capabilities).
Centralized Management
As with any Windows Server product, the system administrator
manages the accounts the Thin Client Terminals use. A major benefit
is that since all applications are run from the server, there is no
local installation or maintenance of software applications at the
client workstation. Furthermore, since all user data and files are
resident on the server, central backup is possible, thereby freeing
the user of this task. |
Rear view of the BOSâNOVA
WTC-400, which supports one parallel printer port, two serial ports,
two USB ports, keyboard port, mouse port, 10/100 base-T Ethernet
interface, and an audio out line.
|
Windows & Citrix Connectivity
|
|
All of the BOSâNOVA terminals provide connections to Windows
Terminal Servers and Citrix servers using the Remote Desktop
Protocol (RDP) or Independent Computing Architecture (ICA) client
software. RDP connects to Windows NT 4.0 Terminal Server Edition (TSE)
or Windows 2000/2003 Server, while ICA connects to TSE or Windows
2000/2003 servers with Citrix Metaframe extensions, including
Metaframe XP.
|

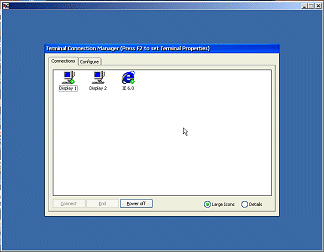

Large icons in the Connection Manager
simplify operation of the terminal.
|
Enterprise Class Remote Administration
|
The
BOSâNOVA WTC-400 is simple to configure either locally or
remotely using the Remote Terminal Administrator (RTA), which
enables the following tasks:
|
Complete terminal configuration
from a central location, including terminal
emulation settings
|
|
|
User lock-out from configuration
changes, keeping the cost of ownership down
|
|
|
Scheduling of firmware updates
|
|
|
Shadowing of the user's desktop
|
|
|
Cloning of user environments
|
|
|
Control over which applications
can be run on a particular terminal
|
|
|
|
Local or remote configuration of BOSâNOVA
WTC-400 terminals is simple using the Remote Terminal Administrator
(RTA).
|
Click here for
more information on the
BOSaNOVA WTC-400 Thin Client Terminal
TN5250e / TN3270e Terminal Emulation
|
|
The BOSâNOVA WTC-400 includes embedded TN5250e and
TN3270e based terminal emulation software for up to four sessions in
connection to IBM iSeries (AS/400) and zSeries (S/390) systems,
including SCS printing. It also supports a full-featured 122-key
keyboard*, enabling efficient work with host applications. |
Embedded TN5250e/TN3270e emulation software
connects up to four sessions on iSeries/zSeries hosts.
|
|
|
|
Full-Featured 122-key Keyboard
The BOSâNOVA WTC-400 includes support for a
full-featured 122-key keyboard*, enabling efficient work with host
applications, whether they be Windows Terminal Server or iSeries
resident.
Because the BOSâNOVA 122-key keyboard is driverless, it functions
seamlessly with any PC, as well as with a thin client. Therefore,
for customers with a mixed PC and thin client environment, the BOSâNOVA
122-key keyboard is the ideal keyboard investment.
The 122-key keyboard available with the
BOSâNOVA
WTC-400 (MSR version pictured) works perfectly
in both Windows Terminal Server and iSeries/zSeries
software environments.
|
Click here for
more information on the
BOSaNOVA WTC-400 Thin Client Terminal
Technical Specifications
|
Model | BOSâNOVA
WTC-400 |
|
Processor
|
|
CPU
| VIA
Eden 400MHz
|
|
Memory
|
|
RAM
|
One SDRAM 168pin DIMM 64MB
|
|
ROM |
One Disk on Memory Module 32MB (DOM)
|
|
Standard Interface
|
|
VGA
|
Up to 1024x768, 16-bit high color, VESA monitor support with DDC
|
|
LAN
|
RJ45, 10/100BaseT
|
|
Keyboard & Mouse
|
PS2 Type
|
|
Serial
|
RS232, 9-Pin DSUB COM1, COM2
|
|
Parallel
|
25-Pin DSUB
|
|
USB Port
|
2 USB Ports
|
|
Audio Line Out
|
1/8" mini, full 16-bit stereo, 44KHz sample rate
|
|
Optional Devices
|
None
|
|
Power System
|
|
Connector
|
Standard power cord, Input AC 100/240 Volt, 50-60Hz
|
|
Physical & Mechanical
|
|
Dimensions
|
W 1 3/4" x L 8 3/4" x H 9 1/2"
|
|
Client Side Software
|
|
OS System
|
Windows CE.NET 4.2
|
|
Terminal Emulation
|
GUI TN5250e/TN3270e terminal emulation display and SCS
printing
|
|
Local Browser
|
IE 6.0 compact browser with JVM (optional) and Word Viewer;
Excel Viewer, PowerPoint Viewer; POP-3 e-mail; VNC Client; PDF Reader; and
Citrix NFuse
|
|
Connectivity
| Remote
Desktop Protocol v5.2 (RDP), Citrix Independent Computing Architecture v7.0
(ICA)
|
|
Local Configuration
|
Terminal/Session Configuration, ICA and RDP Clients
|
|
Server Side Software
|
|
OS System Support
|
Microsoft Windows 2000/2003 Server, Microsoft Windows NT
Terminal Server Edition, Citrix Metaframe, Citrix Winframe
|
|
Management Tool
|
Remote Administrator, Wake on LAN
|
|
Warranty
|
|
Warranty |
3-Year Advanced Exchange |
*Optional
Click here for
more information on the
BOSaNOVA WTC-400 Thin Client Terminal
Ordering Information
| ITEM
NO. | Description |
| BOS7420 |
BOSâNOVA WTC-400 TN5250e/TN3270e, embedded IE browser with
RDP & ICA and office apps
|
| BOS8005 |
Optional JVM to support Java-based applications
|
| BOS8122 |
5250 PC 122-key tactile driverless keyboard, 25 million
keystroke life
|
| BOS8122 |
122-Key Keyboard with MSR (Magnetic Strip Reader)
|
