Firewall / VPN Appliance Secures your Network and Protects your Wallet too.
The InterLynx/TS is a Firewall/VPN device targeted at the remote office environment. It provides an economical yet powerful firewall for your Ethernet network. At the same time, its Virtual Private Network
(VPN) capabilities allow you to use the power of the Internet as the backbone of your remote office communications, with the Total Security protection you’d expect from 3 DES encryption.
If you’ve been struggling with the conflict between secure communications and cost-effective communications, the solution is here. Low cost communications is now available over the Internet, while the
InterLynx/TS provides the high level of security you need.
It is a Firewall with plenty of firepower. Built on a heavy-duty platform with a high-speed CPU, the ILTS has the power to block unwanted traffic, both inbound and outbound. The built-in firewall is configurable to pass only the traffic you need. IP masquerading (NAT) prevents those on the outside from seeing the IP addresses on the inside.
Click
here for more information on the InterLynx/TS
 | IPSec standard VPN with 3DES Encryption, IKE |
| Stateful Packet Inspection Firewall |
| DHCP Server |
| Built-in 4 port 10/100Mbps Ethernet Switch |
| NAT, PAT |
| PPP Dial backup |
| Built-in Print Server |
| SSH,
PGP, and Windows XP Pro VPN Client support |
| Heavy duty hardware for extra reliability
|
|
|
It is a VPN.
For data security, you need more than just a firewall. If you need a cost-saving alternative to leased lines, the Internet offers a part of the solution. DSL or ISDN links to your ISP can provide the bandwidth you need for several offices, at a fraction of the cost of multiple leased lines. Your remote offices then only need to be able to access the Internet (even via dial-up) in order to make a connection. The only issue that remains is that the Internet is a public information highway, yet you need your data to remain private. Drop a pair of
InterLynx/TS units in between any two offices and create a
VPN. All of the data between the two offices is 168 bit encrypted. It would take a year for a supercomputer to break the encryption key, but ours is changed automatically every two hours (configurable, of course).
Specifications:
Part Numbers:
InterLynx/TS: 301-0901-01
Spare Flash: 263-0076-04
SSH VPN Client: 301-9701-01
Package includes: InterLynx/TS unit, CD ROM (User Guide/Reference Manual), Power Cord, two Ethernet cables, Quick Install Guide.
Physical
Dimensions: 12.5” W x 3.75 H” x 14.5”
Weight: 11.0 Lbs, 5.1 Kg
Power: 110/220
VAC, Switchable
Operating Temperature: 0 to 40 C
Operating Humidity: 10 90% non-condensing
CPU: 633Mhz Intel
Memory: 64Mb
OS: Hardened Linux
Flash Drive: 32Mb
LAN Protocol: IP
VPN protocol: IPSec
Encryption: 3DES MD5
Authentication methods: RSA, Shared Secrets
Firewall method: Stateful Packet Inspection
Management: Browser based (IE 4 & up, Netscape 4 & up)
Ports:
| 1 10/100 RJ45 Ethernet port (rear) for connection to external network. |
| 4 10/100 RJ45 Ethernet ports (front) for the local network. |
| 1 Serial port (PPP dial backup). |
| 1 Parallel (print server) port |
Built-in 4 Port 10/100Mbps Ethernet Switch:
Standards:
IEEE 802.3u 100BaseTX,
IEEE 802.3 10BaseT
Media: 100 Ohm Cat. 5 UTP
Switching Method: Store and Forward
Mode: Auto-negotiated 10/100Mbps, Full/Half Duplex
LEDs: 3 per port FDX, Link, 10/100Mbps
Click
here for more information on the InterLynx/TS

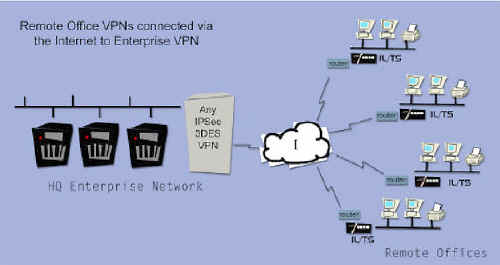

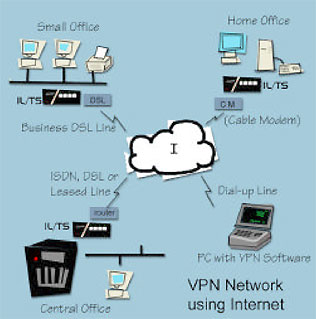

Applications
