The BOSaNOVA e-Twinax Controller:
  The Only PURE TCP/IP Twinax Remote Controller

The e-Twinax Controller is a complete solution that provides a connection to the iSeries AS/400 and i5 over the corporate intranet or LAN/WAN/VPN, or an encrypted connection over the Internet and enables your local or remote Twinax devices attached to it to work over Pure TCP/IP with absolutely no SNA Protocol Traffic

Overview

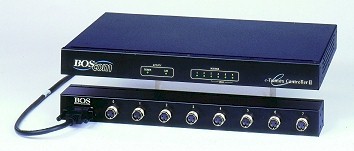

The BOSaNOVA e-Twinax Controller is the only SNA-free, pure TCP/IP Controller in existence. It allows you to retain your investment in of Twinax display stations and printers (both SCS and IPDS), as well as existing cabling (Twinax or Category 5).

The e-Twinax eliminates all SNA, ANYnet and MPTN network traffic. The only protocol the e-Twinax uses is pure TCP/IP.  It is easy to configure and maintain.  Complete remote management of the the eTwinax Controllers in your network is easily done via a Web Browser.  There is no need to go on-site for routine management functions as with other diskette-based controllers.

This is the ideal solution to eliminate the high cost of communication lines to support your SDLC connections.  The BOSaNOVA e-Twinax Controller will support all your existing Twinax devices such as high-speed printers and dumb terminals over your corporate TCP/IP LAN, WAN, or VPN.  With the e-Twinax Controller, all the devices will appear on the AS/400 as TN5250 devices. (Click here for more information on TN5250e)

You can Receive a Microsoft Power Point Presentation on the BOSaNOVA e-Twinax Controller is product by clicking here.

The e-Twinax Controller connects to the network just as any standard Ethernet device does - using a standard network hub or switch.   The e-Twinax Controllers communicate with the host location via your standard network TCP/IP Routers.  The e-Twinax Controller connects to the same network hub or switch as your Ethernet PC's.  To your network, the eTwinax is simply another TCP/IP device with a single IP address.

To Request Additional Information on the e-Twinax Controller, Please Click Here

Advantages

You can Receive a Microsoft Power Point Presentation on the BOSaNOVA e-Twinax Controller is product by clicking here.

Configuration, Maintenance and Remote Management with Ease

The e-Twinax Controller is managed via a standard Web browser, enabling centralized management of all of the units from anywhere on the network, or via a modem dialed in to the RAS. Configuration can also be done using a dumb terminal attached to any of the ports. The controller software can also be updated, including expansion of supported devices and features functions, over the network or via dial-in. Terminals, PCs or printers can be added to the controller very simply using a plug-and-play feature in Auto mode. The device name can be changed at any time, without restarting the controller. The controller also verifies the host connection, including which PTFs are installed for each OS version.

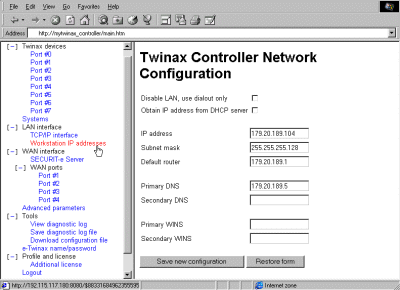

The e-Twinax Controller can be configured, and manage
all devices on the network, via a standard Web browser.

To Request Additional Information the e-Twinax Controller, Please Click Here.

e-Twinax as TCP/IP Controller for Twinax Devices

The connects to the network using a standard network hub, which is attached to the local office via a standard IP router. Ethernet PCs can be connected to the same network hub as the Controller for mixed Ethernet and Twinax infrastructures.

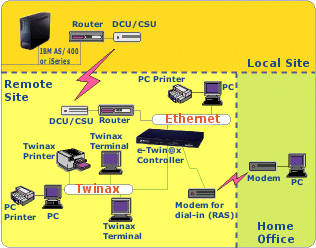

When the traditional SDLC connection is replaced with a Wide Area Network (WAN) connection using TCP/IP, the e-Twinax Controller can be used to maintain legacy Twinax devices (such as SCS and IPDS printers, and dumb terminals) at your remote sites. In this configuration, all the devices will appear on the AS/400 as TN5250 devices.

The e-Twinax Controller connects to the network using a standard network hub, which is attached to the local office via a standard IP router. Ethernet PCs can be connected to the same network hub as the controller for mixed Ethernet and Twinax infrastructures.

Overcome Network Instability and Printing Problems

Automatic Session Recovery

In the event that a router on a frame-relay network disconnects and then re-connects, users of remote Twinax-attached devices can choose to resume their current session. The e-Twinax Controller can be set to automatically recover the session, within a user-defined time period, ensuring smooth and efficient operations even in cases of network instability.

Customized Object for Specialty Printers

The e-Twinax Controller supports a wide variety of Twinax printers, including label and barcode printers that are often called upon to deal with special printing requirements such as oversized fonts, graphics, and unusual page sizes. A parameter can be set to instruct the host to send a pure data stream through the e-Twinax Controller, allowing it to override the original complex formatting commands with simplified commands that are supported by most printer models, before releasing the job to the destination printer.

Back To Top

e-TwinSt@r Series Eliminates Need for Active Star Hubs

The e-TwinStar Series Controller includes a built-in unit featuring 8 (or 16) RJ45 Host Port connections. Twinax devices working over CAT5 lines are connected directly to the Controller, saving the cost of an active star hub in certain configurations.  This eliminates the need for additional power outlets and space in the communications closet, as well as the extra set-up and maintenance time.

The e-TwinStar (4800 Series) is available in models with support for 8, 16, 28, 56 or 112 twinax addresses/devices.  The 4800 Series is fully upgradeable from one model to the next allowing for growth from 8 to a full 112 device support.

Upgrades are made by simple entering a new software key in the configuration section of the e-Twinax. You can upgrade remote locations by accessing the upgrade portion of the configuration over your WAN.  Upgrading is done while the controller is in full operation.  There is no need to have those users connected to it brought down.  This eliminates the need other controllers have to bring them down while increasing their device capacity or adding options.

Explanation of Device Support
for the Twinax and RJ45 Ports of e-Twinax Controller

As with the standard AS/400 8-port "Twinax Brick" from the Twinax Workstation Controller, each Host Port (Twinax or RJ45) of the e-Twinax will support up to a maximum number  of 7 device addresses (0, 1, 2, 3, 4, 5, 6), up to the maximum number of devices the particular model controller will support.  This convention holds true to all Twinax or RJ45 Host Ports of S/36, S/38, AS/400, iSeries and all IBM, Decision Data, I-O, Idea, and Perle Remote Controllers except for the very old 5251-12 and 5294 controllers that only supported a maximum of 4 addresses per Host Port.

For example, an IBM 5394-01B Controller has three Twinax Host Ports.  Three ports with 7 devices each would total 21.  The 5394-01B only supports 16.  You can distribute those 16 device addresses across those three ports however you see fit.  That could be 7 on the first port, 7 on the second port and 2 on the third port.  You could also have 6, 6 and 4 or any other combination that totals 16 device addresses with a maximum of 7 on any one port.

Another example is the 4616 (Twinax Host Ports) and 4816 (RJ45 Host Ports) of the e-Twinax Controllers.  Both of these models will support 16 Twinax addresses/devices but only have 8 physical ports.  Using the same logic as with the 5394-01B example, you can connect devices to ANY of these 8 ports as long as the total number of addresses used is 16 or less.  For example you could use the same 7, 7, and 2 on the first three Host Ports as with the 5394.  Being these models have 8 Host Ports, you could also put 2 devices on each port for a total of 16.  You could also have 4, 4, 4 and 4 on four of the 8 Host Ports or any other combination that totals 16 device addresses with a maximum of 7 on any one of the 8 ports.

If you need to connect more physical devices than the number of ports you have two options.

First, you can "cable-through" your twinax devices from one to the next using actual twinax cables.  Using this method you can connect up to 7 devices to a single Host Port.  If you are using multiple session terminals, the number of physical devices would be less as each Host Port will only support 7 addresses.

Second, you can add a Twinax-to-RJ45 Active Star Hub such as the Gemini Express Active Star Hub to your setup.  These Active Star Hubs connect to one of the controllers Host Ports either by Twinax Cable or Category 5 (CAT5) cable, and expand the single port to 7 RJ45 ports corresponding with the device addresses available on that port of 0, 1, 2, 3, 4, 5, and 6.  This is the same whether the e-Twinax Controller has Twinax Host Ports or RJ45 Host Ports.  In this implementation each Twinax Device would be required to have a Twinax-to-RJ45 Balun on it to allow connection with a CAT5 cable.

The RJ45 Host Ports of the e-Twinax Controller are operationally the same as a Twinax Host Port with an RJ45 Balun attached to it.

Back To Top

To Request Additional Information the e-Twinax Controller, Please Click Here.

E-mail on Dumb Twinax Terminals*

Basic e-mail functionality, known as TwinMail^TM, is supported on dumb Twinax terminals. In addition to sending and receiving e-mail, TwinMail includes a personal address book that can be organized according to user-defined preferences.

* Optional

Back To Top

PC Remote Access

The e-Twinax Controller can be configured with an optional  2- or 6- port Remote Access Server (RAS), providing remote PC users with network access in addition to AS/400 access. Remote users can dial in to the e-Twinax Controller and gain access to the network using the RAS. This RAS includes a firewall for restricting access per user to specific IP devices or ports (e.g. one group of users may be allowed to access the AS/400 for display emulation, but not file transfer). The RAS also automatically logs all remote access activity. The RAS component can use the services of any RADIUS server for authentication, if required.

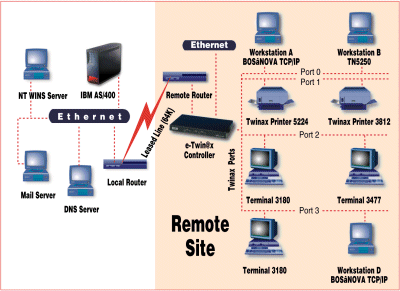

e-Twinax Controller in Remote Configuration, Using Leased Line Connection via Routers

Back To Top

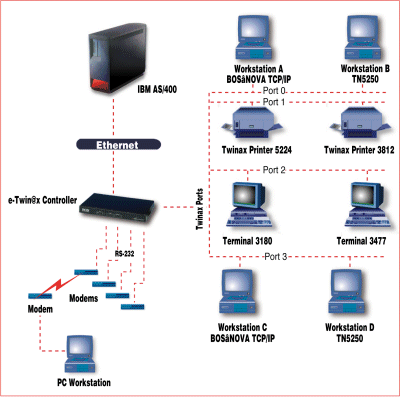

Sample e-Twinax Controller Configuration for Local Environment, including RAS

To Request Additional Information on the e-Twinax Controller, Please Click Here.

Secure Low Cost Connection Using the Internet

The e-Twinax Controller can be connected to the AS/400 via the Internet, saving you a fortune in leased line expenses. The requirements are minimal: at the local site you need a fixed connection to the Internet and BOS’ Java SECURIT-e Server^TM, which can be run on the AS/400, and any PC or Server with a Windows-, Linux- or Unix-based operating system. At the remote site you need a connection to the Internet, either via a dial up account or using a leased line to a local ISP. 5250 traffic, encrypted via industry-standard algorithms, flows from the controller to the Java-based server, then the data is deciphered and sent to the AS/400. Using this connection method the customer can save thousands of dollars a year on long-distance leased line costs. The e-Twinax Controller can initiate the dial-up to the Internet when the first user tries to access the AS/400. It also supports numerous, simultaneous connections to multiple ISPs, allowing increased bandwidth as well as a built-in fallback when required.

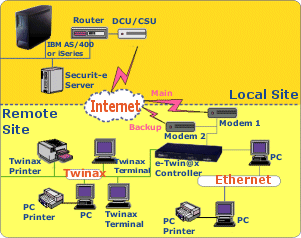

e-Twinax Controller as a Secure Connection to the AS/400 over the Internet

Technical Specifications

Ordering Information

To Request Additional Information the e-Twinax Controller, Please Click Here.

TN5250e

Why use TN5250e for devices? TN5250e is the fastest way to communicate with the AS/400, because it requires no routers, no APPC encapsulation, and no additional configuration beyond simple TCP/IP configuration. Since TN5250e supports device naming and SCS printing, there is no real disadvantage in using this type of connection. IBM, BOS and many software companies also support ODBC, SQL file transfer, and IFS (shared folders) over TCP/IP. With IBM's Operations Navigator given free of charge with latter OS/400 versions, the AS/400 can be configured as part of Microsoft Networking. This allows the AS/400 drives to be shared, as well as any AS/400 printer, with any PC's on the TCP/IP network.
