True "Device" AS/400 LAN Printing
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overview | Page Range Printing - Permits users to print select page ranges from large documents and reports. |
| Printer Error Reporting - Prevents loss of AS/400 print data by providing same level of print status reporting as a direct system attached twinax printer. |
| True IBM AS/400 Printer Emulations - Permits full-function AS/400 printing on the attached LAN printer. 3812-01 (SCS) laser, 4214 matrix and 5224/25/56 matrix printer emulations. |
| No Host Print Transform - No need to waste valuable processor cycles on EBCIDIC to ASCII translation. The 5450/5430 handles that all with it's own embedded RISC processor. |
| Simultaneous Multi-Host Printing - Maximizes printer utilization by supporting concurrent printing not only from the AS/400 but from Novell, Windows NT, Windows 95, OS/2, UNIX, etc. |
Click here for more information on the 5450 and 5430 Multi-Protocol Print Servers
10/100 Mbps Ethernet Print Server

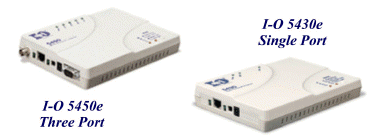

The 5450 MPS attaches up to three printers (2 parallel, 1 serial) directly to the network allowing users of different operating systems to share printer resources. The 5430 MPS attaches one parallel printer. Both of these I-O print servers connects to 10BaseT, 10Base2 or 100BaseT LANs and can thus adapt to higher LAN speed requirements. Because they support TCP/IP, IPX/SPX, and NetBEUI/NetBIOS protocols, the 5450 MPS and 5430 MPS can be used with a wide variety of operating systems including Novell 3.x and 4.x, Windows NT, Windows 95, OS/2, Unix, and OS/400. The additional support of the IBM SNA and AnyNet protocols allows controlled host printing directly from the IBM AS/400.
Reliable, Full-Function AS/400 LAN Printing:
In addition to operating as a standard LAN print server, the 5450 MPS and 5430 MPS support AS/400 printing over TCP/IP (LPD/LPR), SNA (APPC) and AnyNet (SNA encapsulated in TCP/IP). With the SNA or AnyNet protocol selected, the 5450/5430 MPS emulates an IBM 5494 controller. This emulation allows the LAN-attached printer to offer the same reliable and full-function AS/400 printing support as a 5250 twinax-attached printer. The5450 MPS is also able to run three simultaneous IBM printer sessions featuring I-O’s field-proven IBM 3812-1, 4214 and 5224/25/56 printer emulations. The ability to convert AS/400 EBCDIC data to ASCII directly on the I-O 5450 MPS frees the host or a client PC from this resource-intensive task. The 5430 MPS has the same capabilities but is limited to only one AS/400 IBM printer session when multiple printer support is not needed.
If you need IPDS Laser Printing over your TCP/IP network, click here for information on the 5435 IPDS Ethernet Print Server by I-O Corporation.
Click here for more information on the 5450 and 5430 Multi-Protocol Print Servers
| IBM Features: | LAN (ASCII) Features: |
| •
Supported Protocols for AS/400 Printing: - TCP/IP (TN5250e) - TCP/IP (LPR/LPD) - SNA (5494, APPC) - AnyNet (SNA over TCP/IP) • Supported IBM Printer Emulations: - 3812-1 (SCS) - 4214 - 5224/25/56 • Supported Printer Drivers for EBCDIC-ASCII Conversion: - HP PCL - IBM Proprinter, PPDS - Epson ESC/P2, FX, LQ - Generic |
•
Supported Protocols for LAN (ASCII) printing: - TCP/IP (LPD/LPR) - IPX/SPX - NetBEUI/NetBIOS • Supported LAN (ASCII) Hosts: - Novell (NDS, bindery,PSERVER, RPRINTER) - Windows NT, Windows 95, Windows for Workgroups - OS/2 Warp, OS/2 - UNIX • FLASH Memory • SNMP Compliant • Supported Ethernet Frame Types: - IEEE 802.2, 802.3, Ethernet II, SNAP • Supported Ethernet Media: - 10BaseT, 10Base2, 100BaseT (auto-sensing) • Printer Ports: - 5450 MPS - 2 IEEE 1284 bi-directional Centronics parallel ports 1 RS-232 serial port (DB9) - 5430 MPS - 1 IEEE 1284 bi-directional Centronics parallel port • 100-250V (IEC) Power Supply Included • Powerful RISC Processor |
Additional Features
| Features | Benefits |
| AS/400 printing over Ethernet | Allows AS/400 print jobs to be seamlessly printed over a LAN. |
| Printer error reporting to the AS/400 | Prevents loss of AS/400 print data by providing same level of print status reporting as a 5250 twinax printer. |
| Page range printing from the AS/400 | Permits users to print select page ranges from large documents and reports. |
| Offloading of Data Conversion | Eliminates unnecessary AS/400 or PC overhead by converting EBCDIC data directly on the I-O 5450 MPS. |
| 3 IBM printer sessions | Supports up to three individual 5250 printer sessions for maximum printing flexibility. |
| True IBM printer emulations | Permits full-function AS/400 printing on the attached LAN printer. |
| Simultaneous, multi-host printing (TCP/IP, IPX/SPX, NetBEUI, SNA, AnyNet) |
Maximizes printer utilization by supporting concurrent printing not only from the AS/400 but from Novell, Windows NT, Windows 95, OS/2, UNIX, etc. |
| 10BaseT, 10Base2, and 100BaseT | Protects print server investment when upgrading the LAN to 100 Mbps. |
| 2 parallel and 1 serial printer ports | Allows attachment of up to three printers to the AS/400 and LAN using only one network connection. |
| Easy setup and configuration | Installs in minutes by avoiding complex PC software configurations. |
| Powerful RISC processor | Takes advantage of the LAN printer’s maximum print speed even when processing AS/400 jobs. |
