True "Device" iSeries AS/400 & Mainframe LAN Printing
|
||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
Overview
 |
Connects up to 3 printers (2 parallel, 1 serial)
| 10 / 100 Mbps Ethernet LAN, auto sensing
| Multiple Host support (AS/400 iSeries, Mainframe zSeries, Windows, Unix)
| Multiple LAN protocols (SNA, TCP/IP, IPX/SPX, NetBIOS)
| Host printing via Telnet (TN5250e and TN3270E), SNA (APPC) or AnyNet
| Simple, one step set-up (auto configuration) when using TN5250e or TN3270e
| Host controlled printing, including error reporting, page range printing etc.
| I-O's award winning IBM printer emulations
| EBCDIC to ASCII conversion done by the 5450e, Frees host resources and increases print speeds> |
If you have a requirement for IPDS Laser Printing over your TCP/IP network from your AS/400 or Mainframe, click here for information on the 5435e IPDS Ethernet Print Server.
Full Print Queue Control
You will be able to have the same full print control over a TCP/IP printer just as if it was a direct attached twinax or coax printer. Some of the print queue features you will get back are:
| Page Range Printing - Permits users to print select page ranges from large documents and reports. |
| Printer Error Reporting - Prevents loss of IBM Host print data by providing same level of print status reporting as a direct system attached twinax or coax printer. |
| True IBM iSeries AS/400 and S/390 zSeries Printer Emulations - Permits full-function IBM Host printing on the attached LAN printer. 3812-01 (SCS) laser, 4214 matrix and 5224/25/56 matrix printer emulations. |
| No Host Print Transform - No need to waste valuable processor cycles on EBCIDIC to ASCII translation. The 5450e / 5430e handles that all with it's own embedded RISC processor. |
| Simultaneous Multi-Host Printing - Maximizes printer utilization by supporting concurrent printing not only from the IBM Hosts but from Windows, Novell, OS/2, UNIX, etc. |
Click here for more information on the 5450 and 5430 Multi-Protocol Print Servers
Reliable, Full-Function AS/400 & Mainframe LAN Printing

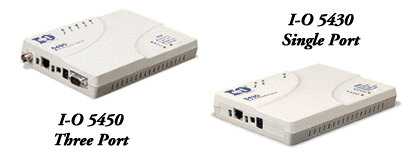

In addition to operating as Ethernet LAN print servers, the I-O 5430e & 5450e support AS/400 - iSeries and IBM Mainframe printing over TCP/IP, SNA (APPC), and AnyNet (SNA encapsulated in TCP/IP). Using any one of these protocols, the 5430e or the 5450e allow the LAN attached printer to offer the same reliable, full-function IBM host printing support as a direct system-attached twinax or coax 5250/3270 printer. These protocols also offer users one step set-up (auto-configuration) as well.
In addition, the 5450e is
also able to run three simultaneous IBM host printer sessions.
They both can also speed up IBM Host printing. Since the 5430e/5450e
performs all the EBCDIC to ASCII conversion. ASCII printers appear to the
IBM host as true twinax- or coax-attached IBM printers, not simply remote
print queues. This allows for a full control over print outputs (page
selection, copies, restart, etc.) and a better control over error
reporting (out of paper, offline, etc.). This also eliminates the need for
host based conversion software (Host Print Transform), freeing system
resources for more critical tasks. It also reduces considerably network
traffic and improves print speed.
If you have a requirement for IPDS Laser Printing over your TCP/IP network from your i5 iSeries or zSeries Mainframe, click here for information on the 5435e IPDS Ethernet Print Server.
Click here for more information on the 5450e and 5430e Multi-Protocol Print Servers
| IBM Features: | LAN (ASCII) Features: |
|
•
Supported Protocols for i5, iSeries, eServer AS/400 or S/390
zSeries Printing:
|
•
Supported Protocols for LAN (ASCII) printing: - TCP/IP (LPD/LPR) - IPX/SPX - NetBIOS • Supported LAN (ASCII) Hosts: - Novell (NDS, bindery) - Windows 95, 98, NT, 2000, XP - Windows for Workgroups - OS/2 Warp, OS/2 - UNIX • FLASH Memory • SNMP Compliant • Supported Ethernet Frame Types: - IEEE 802.2, 802.3, Ethernet II, SNAP • Supported Ethernet Media: - 10BaseT, 10Base2, 100BaseT (auto-sensing) • Printer Ports: - 5450e - 2 IEEE 1284 bi-directional Centronics parallel ports 1 RS-232 serial port (DB9) - 5430e - 1 IEEE 1284 bi-directional Centronics parallel port • 100-240V (IEC) Auto-Switching Power Supply |
Additional Features
| Features | Benefits |
| IBM Host printing over Ethernet | Allows IBM Host print jobs to be seamlessly printed over a LAN. |
| Printer error reporting to the Host | Prevents loss of host print data by providing same level of print status reporting as a 5250 twinax or 3270 coax printer. |
| Page range printing of host print jobs | Permits users to print select page ranges from large documents and reports. |
| Off loading of Data Conversion | Eliminates unnecessary overhead by converting EBCDIC data to ASCII data directly on the I-O 5450e or 5430e |
| 3 IBM printer sessions | Supports up to three individual 5250 and/or 3270 printer sessions for maximum printing flexibility. |
| True IBM printer emulations | Permits full-function IBM Host printing on the attached LAN printer. |
| Simultaneous, multi-host printing | Maximizes printer utilization by supporting concurrent printing not only from the host but from Novell, Windows, OS/2, UNIX, etc. |
| 10BaseT and 100BaseT | Provides versatility in attaching to LANs at different speeds. |
| 2 parallel and 1 serial printer ports | Allows attachment of up to three printers to the host and LAN using only one network connection (5450e only). |
| Auto configuration | Installs in minutes. |
