Network Appliance to Support AFP/IPDS
 |
Connects one PCL 5e compatible ethernet capable laser printer |
|
Supports Advanced Function Printing (AFP) using IPDS protocol |
|
Also supports standard Host printing using SCS protocol |
|
High speed printing - over 100 pages per minute |
|
Supports over 100 AFP/IPDS Fonts |
|
10 / 100 Mbps Ethernet LAN, auto sensing |
|
Multiple Host support (AS/400, iSeries, eServer i5, S/390 – zSeries, Windows, Unix) |
|
Multiple LAN protocols (SNA, TCP/IP, IPX/SPX, NetBIOS) |
|
Host printing via Telnet (TN5250e and TN3270E), SNA (APPC) or AnyNet |
|
Simple, one step set-up (auto configuration) when using TN5250e or TN3270e |
|
Host controlled printing, including error reporting, page range printing etc. |
|
I-O's award winning IBM AFP/IPDS and SCS printer emulations |
|
Increases print speeds |
|
Easy to install and use, includes I-O's PrintControl™ utility software |
High Speed Printing

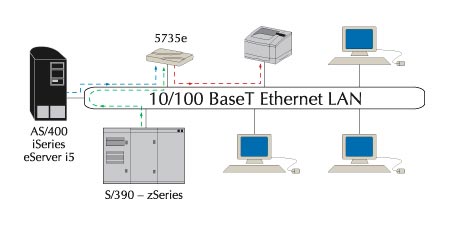

Attached to the LAN, the 5735e supports high-speed, high-performance printers. Without the bottleneck of a slow parallel port, the 5735e supports over 100 pages per minute. Whether printing from an IBM i5, iSeries, AS/400 or a zSeries-S/390, fast printing can be obtained with laser printers supporting port 9100. In addition to the Ethernet connection, the 5735e has a parallel port to directly attach a printer if it does not have an Ethernet connection (laser or dot-matrix).
Full Printing Control from IBM Host
The 5735e offers the same reliable, full-function IBM host printing and control found with direct Twinax/Coax attached printers. With the 5735e, IBM host print jobs are not lost in the black hole of LAN printing. The 5735e provides bi-directional communication between the printer and the IBM host, allowing error reporting and page range printing.
Easy to Use
I-O's PrintControl™ utility software is included with every 5735e. Whether selecting TCP/IP or SNA, configuration is made easy through the use of a menu-based utility.
Click
here for more information on the 5735e AFP/IPDS/SCD Gateway
| For i5, iSeries, eServer and AS/400 | For IBM S/390 zSeries | For LAN Systems | Printers | General |
| • Protocols: - TCP/IP PPR/PPD TN5250e LPR/LPD AnyNet (SNA over TPC/IP) - SNA (APPC) • IPDS Emulations: - IBM 4028 AS1 - 3812-2 - 3816-1D/S - Includes 4312/17 font support • SCS Emulations: - IBM 3812-1 - 4214 - 5224 - 5225 - 5256 • IPDS Towers: - Supports all towers • System Requirements: - OS/400 Release 3.1 or higher - PSF400 |
• Protocols: - TCP/IP PPR/PPD TN3270e LPR/LPD AnyNet (SNA over TPC/IP) - SNA (APPC) • IPDS Emulations: - IBM 4028 AS1 - 3812-2 - 3816-1D/S - Includes 4312/17 font support • SCS Emulations: - IBM 3812-1 - 4214 - 5224 - 5225 - 5256 • IPDS Towers: - Supports all towers • System Requirements for OS/390 or MVS: - PSF/MVS Version 2.2.0 with APR OW15599, - MVS Scheduler with APRA 0212236, TCP/IP Version 3.1 or higher |
• Protocols: - TCP/IP (LPR/LPD), - Novell IPX/SPX - NetBIOS - I-O DirectPort™ (Windows 9x Peer-to-Peer) • Supports LAN Hosts: - Novell (NDS, bindery, PSERVER, RPRINTER) - Windows 95, 98, NT, 2000, XP - Windows for Workgroups - OS/2 Warp, OS/2 - UNIX
|
• Ethernet Connection: - Port 9100, PJL unsolicited messages, - PCL 3/5e • Parallel Connection: - Dot-Matrix (SCS only) - Laser (IPDS/SCS) |
•
Supported Ethernet Frame Types: - IEEE 802.2 - 802.3 - Ethernet II - SNAP • Supported
• Printer Ports: • FLASH Memory |
Plus a wide range of additional features that boost productivity and performance.
| Features | Benefits |
| High Speed Printing, 100+ ppm | Data conversion is accomplished at the 5735e and sent to the printer via the Ethernet LAN. The 5735e takes advantage of high-speed, high-performance printers without the bottleneck of the parallel port. |
| Enhanced Telnet 5250 (TN5250e)and Telnet 3270 (TN3270e) | Communicates with the IBM Host using native TCP/IP |
| True Print Complete | Users are notified when the print job is finished taking the guess work out of printing. |
| Duplex | Printing can be done on both sides of a page. The full functionality of a duplex printer can be utilized. |
| Page Offset Functions | Provides more flexibility in page positioning with no need to modify host applications. |
| Supports over 100 AFP/IPDS Fonts | There are more fonts to choose from than other AFP/IPDS interfaces. |
| On-board FLASH Memory | Allows for field upgrades providing the latest new features from I-O. |
| Printer error reporting to the host | Prevents loss of host print data by providing the same level of print status reporting as a twinax or coax printer. |
| Page range printing | Permits users to print select page ranges from large documents and reports. |
| Off-loading of Data Conversion | Eliminates unnecessary overhead by converting EBCDIC data to ASCII data directly on the I-O 5735e. |
| True IBM printer emulations | Permits full-function host printing on the attached LAN printer. |
| Simultaneous, multi-host printing | Maximizes printer utilization by supporting concurrent printing not only from the host but from Novell, Windows, OS/2, UNIX, etc. |
| 10BaseT and 100BaseT | Provides versatility in attaching to LANs at different speeds. |
| Remote Printing | The printers can be attached locally or remotely via a WAN or VPN network. Printers do not need to be next to the 5735e. |
| One Parallel Port | One laser or dot-matrix printer can be directly attached to the 5735e for IBM host to LAN printing jobs. |
| Auto configuration | Installs in minutes. |
|
