ES/3XTwin 5250 Emulation Kit
for PC-to-IBM® Midrange
Twinax Emulation

Overview

ES/3XTwin and the new ES/PCI from Decision Data/NLynx Systems are hardware/software packages that provides powerful, flexible local 5250 terminal and printer emulation for any Windows® environment. Using ES/3XTwin, you can link PCs via Twinax to an IBM System/36®, Advanced Series/36®, or AS/400®, to emulate a variety of 5250 terminal types and IBM midrange printers.

| Information Request Form | Specifications |

Two solutions to handle all Windows operating systems

ES/3XTwin for PCs with ISA expansion slots provides terminal and printer emulation for Windows 3.1, Windows for Workgroups™, Windows 95/98/NT/2000/ME and Windows XP®—all in a single solution. NLynx has bundled Emerald Series 32-bit emulation software for Windows 95 and Windows NT and 16-bit for Windows 3.1 and Windows for Workgroups 3.X to provide emulation for any Windows environment. The ES/3XTwin installer program detects the Windows operating system and automatically installs the appropriate software.

Advanced Features

• Multilanguage support. Localized product for English, French, Italian, German, and Spanish.
• Flexible connectivity options. PCs can be connected locally by a standard twinax cable, or through an IBM 5X94 workstation controller.
• Built-in migration path. Because ES/3XTwin contains both 32- and 16-bit emulation, users can start out in a Windows 3.X environment and upgrade to a newer Windows operating system without having to purchase additional software.
• No IRQs needed, no memory segment. The ES/3XTwin solution requires no IRQs or memory segment, freeing up your computer’s valuable resources for more productive uses.
• Client Axcess/400® support. The 3XTwin adapter is fully compatible with CA/400 features, including shared folders and ODBC (Open Database Connectivity). It also supports Personal Communications/400® and all versions of PC Support.
• Multiple session support. A single PC can run seven sessions concurrently. S/3X data entry, batch processing, print jobs, and PC resident software can be run simultaneously.
• Printer options. Choose from a variety of popular printers supported by the PC. Up to three printers are supported at any one time, each running independently while another host or PC application is active.
• Hotspots identify host menu items. Host menu items and function keys can be assigned colors. Employ this aesthetic and intuitive approach to locate them quickly and easily.
• Keystroke memory and playback (macros). Predefine keystrokes for automated sign-on, repetitive data entry, or unattended operation. Store as many as 2,048 keystrokes in up to 24 keyboard macros.
• ETU® file transfer support. ETU, an industry standard from NLynx Systems, allows direct file transfer between the PC and System/36, Advanced Series/36, or AS/400.

| Additional Features | Diagram | General |  PC-to-Midrange Connectivity |
| Information Request Form | Specifications |

Additional Features

Return to Menu

• Drop-down menu support using mouse button.
• Keyboard mapping allows easy reconfiguration to support existing keyboards.
• Advanced printer support includes autorotate and autosize functions, either direct or network-attached.
• With Application Program Interface (WINHLLAPI), unlimited options are available for simplifying PC operations, including use of internally developed or third-party software.
• Custom tool bar allows users to create their own easy-to-use buttons for frequently used items, including macros.
• DOS support available for ES/3XTwin adapter only.  DOS not supported on EX/PCI adapter.

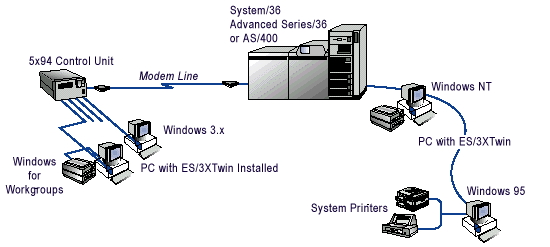

Diagram

Return to Menu

Specifications

Return to Menu

PC System Requirements

• PCs with 386 (ES/3XTWIN only), 486, or Pentium® processor
• 3-1/2" floppy disk drive (ES/3XTWIN), CD-ROM for ES/PCI
• Hard disk with 5MB space available
• Half-card expansion slot (ISA)
• Minimum of 4MB of memory
• Windows 3.1(ES/3XTWIN only), 95/98/NT/2000/ME and Windows XP

IBM Devices Support

• Displays:   5251–11; 5291–1,2; 5292–1; 3179–2; 3180–2; 3196–all; 3197–C,D
• Printers:    3812, 5219, 4214, 4210, 5225, 5224, 5256, system printer emulation

General

Return to Menu

The ES/3XTwin Package: ES/3XTwin Adapter Card (ISA) 32- and 16-bit emulation software Twinax T-Connector Quick Installation Guide User Guides (on diskette)

The 3XTWIN/PCI Package: ES/PCI Adapter Card (PCI) 32-bit emulation software Twinax T-Connector Quick Installation Guide User Guides (on CD-ROM)

Part Number:

Item	Order Number	Mfr. Item Number
ES/3XTwin	NLY-3XTWIN	301-9073-04
ES/PCI	NLY-ESPCI	301-9606-01

Warranty:

NLynx limited one-year warranty on adapter card and 90 days on software.

Technical Support:

In the U.S., technical support is available between 7:30 a.m. and 7:00 p.m. (CST), Monday through Friday, toll-free on 1-888-659-6967.

For Asia/Pacific, Australia, and Latin America, call (512) 301-8180.

For Europe, Africa, and the Middle East, call +44 161 928 7014.

Related NLynx Products

• ETU®: File transfer utility that resides on the S/3X or AS/400 and provides menu-driven options for transfer and translation of data between the PC and host.
• ES/TEC-2™: Economical IBM-compatible, plug-and-play, two-session card (requires Memory Segment and IRQ)
• ES/3XTwin®: DOS emulation software and 5250 ISA adapter
• ES/PCI®: Windows 95/98/2000/NT emulation software and 5250 PCI adapter
• ES/Remote™: Software and hardware combination that allows users dial-up remote access to an IBM Midrange System. Works in conjunction with NLynx’s Axcess/400™ Remote Access Unit. Also available for Macintosh and DOS users.
• ES/Server™: Low-cost gateway, connecting via Twinax to an IBM Midrange to share seven emulation sessions (per adapter) over an Ethernet or Token Ring LAN.
