ET2000 Ethernet Terminal
|
|
||||||||||||||||||||||||||||||||||||||||||
|
|||||||||||||||||||||||||||||||||||||||||||
An Ethernet Terminal for
Attachment
|
|||||||||||||||||||||||||||||||||||||||||||
 |
True TCP/IP Network Capabiity |
|
5250 Emulation Plus Ethernet Connectivity |
|
Full AS/400 122-Key 24-Command Key Keyboard (optional) |
|
Printer Port Standard On All Models |
|
3 Year Advanced Exchange Warranty |
The use of TCP/IP combined with the capability of flash update will allow users to maintain access to the latest features and firmware without interruption of service or additional cost.
Cost savings for System applications can be obtained by avoiding IBM Network Station or PC's to provide user application support where a character based, terminal emulation sessions are required. The ET 2000 provides a compatible solution without complicated configurations, seat license cost or incompatible keyboard selections at the right cost to the customer.
Click here for more information on the CLI ET2000 Ethernet TCP/IP Terminal
New Connectivity
The CLI ET2000 Ethernet terminal is a true character-based terminal that supports Ethernet connectivity for your AS/400 Network. The ET2000 features low-cost, full-function Ethernet convenience. An active printer port provides a simple connection at a cost-effective price.
Simple Interface
Featuring TCP/IP and TN5250 protocols for iSeries and AS/400 connectivity, ET2000 simplifies
network connectivity management. By eliminating complicated boot servers, ET2000 powers
on with a sign-on screen just like a twinax terminal. The IBM AS/400 Ethernet attachment
interface provides a simple connection for your ET2000.
Hassle-Free Printing
ET2000 supports all SCS (twinax data stream) features. Unlike LPD, the printer connected to the ET2000 retains all the functionality as if it was connected to twinax.
Productivity
User productivity is enhanced by eliminating any learning curve and costs associated with NC or PC products. Centralized management of individual units better utilizes support and help desk assets.
Cost Savings
Eliminates 5x94 remote controllers by using a inexpensive network router. You can also eliminate your SNA WAN and use TCP/IP thereby reducing communication costs. Plus, no seat license cost.
As with all of CLI's modular display stations, you select from a wide array of keyboard and monitor styles for individual application or user requirements. Whether you need a compact terminal with a 9" monitor and compact keyboard, or a large screen color model, CLI can provide the proper terminal for your particular requirement.
Click here for more information on the CLI ET2000 Ethernet TCP/IP Terminal
Download the Computer
Lab International (CLI) ET2000 Datasheet
Hardware Specifications
| Hardware Specifications and Features | |
| Sessions | Up to 4 terminal (multiple hosts) or 3 terminal and 1 printer |
| Host and Server Support | TN5250e -
iSeries & AS/400 - OS/400
V3R1 or above TN3270 - zSeries & S/390 VT100 |
| Protocols | TCP/IP, DHCP, TFTP, DNS, Telnet: TN5250, TN5250e, TN3270, TN3270e, VT100 |
| Ethernet Interface | RJ45, 10BaseT, Ethernet Standard 2 |
| Standard Features | Communication diagnostics Flash ROM update new software versions Selectable column and character displays Auto dim, adjustable to user requirements Screen print with trim feature Flash alarm for industrial or harsh environments, user selectable |
| Display Attributes | Color pallet supports
256k colors Reverse image with overscan display for monochrome monitors |
| TN5250e Features | IBM 3477 terminal
emulation Supports color display functions in 80 and 132 column mode Device Naming 80 columns x 24 rows (1920 character standard display) 132 columns x 27 rows (3564 character standard display) IBM 3812-1 printer emulation Full printer support with ASCII pass through |
| TN3270 Features | Available 2nd Quarter 1999 |
| VT100 Features | Available 3rd Quarter 1999 |
| Printer Port | Standard printer port
supports a wide array of printer types and models via a Centronics parallel port CLI supplies a variety of standard drivers to support a wide selection of printers COR (computer output reduction) support is offered for all PCL compatible laser printers All SCS (twinax data stream) features supported |
| Barcode Support | Barcode decoder and
scanner compatibility including dedicated barcode reader input (no keyboard required) All major barcode printers supported |
| Keyboards | 101-key, 102-key, 122-key, 101-key with mag-stripe and wedge, or 84-key compact keyboard |
| Monitors | Uses any size color or monochrome PC VGA or SVGA monitor as a display |
| Physical Specifications (Logic Unit Only) |
Width: 5 cm (2 in) Depth: 28.5 cm (11.25 in) Height: 24 cm (9.5 in) Weight: 1 kg (2 lbs) |
| Power Requirements | 100/120/220/240 VAC, 50/60 HZ, Energy Star Compliant, UL, CSA |

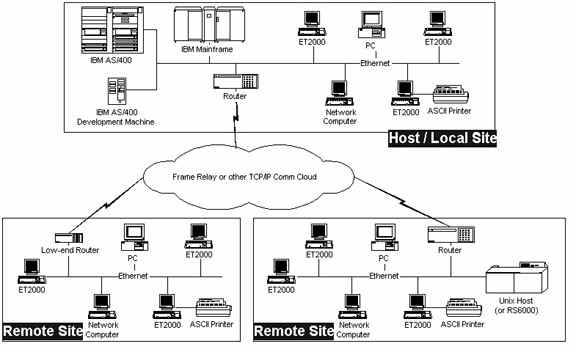

ET2000 Ethernet Terminal Network Topology
Featuring TCP/IP and TN5250 protocols for AS/400 connectivity, ET2000 simplifies network connectivity management. By eliminating complicated boot servers, ET2000 powers on with a sign-on screen just like a twinax terminal. The IBM iSeries and AS/400 Ethernet attachment interfaces provides a simple connection for your ET2000.
Click here for more information on the CLI ET2000 Ethernet TCP/IP Terminal
Download the Computer
Lab International (CLI) ET2000 Datasheet
