Features

Benefits

Ergonomic Design

Low emissions (MPR II), 75 Hz refresh rate, flicker-free display (ISO 9241-3).

Auto Dim/Power Saver Mode

Saves 40-50% of power, reduces power consumption to 18 watts.

Horizontal Split Screen

80/80, 80/132, 132/132 modes for multi-task operation.

Multiple Printer Emulations

5224, 5225, and 5256 emulations allow flexible, low cost printing.

Laser Printer Support

Any HP compatible PCL4 or PCL5 laser printer may be attached.

Printer Control from Keyboard

New Line, Form Feed, Stop, Start, and Cancel are all available from the keyboard.

I-O Command Pass-Thru™TM

Allows control of all user-programmable features of the printer.

Local Screen Print

Local print copy at any time.

Type Ahead Feature

Allows keystrokes to be typed when display is inhibited.

Record/Pause/Play Function

Up to 1570 keystrokes of Record/Pause/Playback past enter with security options.

Overscan/Reverse Video

Reverse the background and text of the screen.

Software Security

Blanks the screen and inhibits input from the keyboard without signing off the display.

Printer Code Editor

Allows customization of printer tables which provide attachment to various printers.

Twinax Monitor Mode

Diagnostic tests that indicate what is occurring on the twinax cable.

Item

Feature / Description

Host Systems:

IBM AS/400 and System/3X

Interface:

IBM high-speed twinax to HP LaserJet internal bus

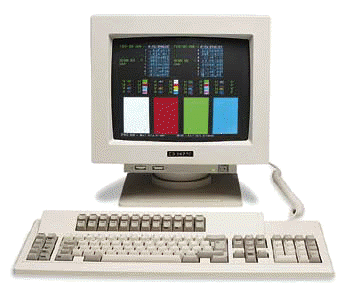

Display:

15" non-glare color screen, .28 mm dot pitch, 80/132 column and split screen modes

Columns:

80 column - 960 x 416 or 132 column - 1056 x 435

Sessions:

3 display, 1 printer (DDDP)

Keyboard:

102/103-key (standard), 122-key (optional), low profile, adjustable height, tactile keys

Approvals:

UL, CSA, TUV/GS, FCC A, VDE B/Vfg 243, MPR II, CE, Energy Star, ISO 9241 Part 3

Power:

90-260 VAC 50-60 Hz Auto-ranging, 67 watts

Environment:

+32° to 104° F (0° to +40° C)
