AG6601 Thin Client Terminal Dual Video Ready - 1.4 GHz Processor WES7, CE 6.0 and Linux

An Advanced Thin Client Terminal for All Desktop Environments as Well As for Your IBM Power Systems over TCP/IP

PLEASE NOTE: The AG6601 Line of Thin Client Terminals has been discontinued. It is available as a refurbished product only on an "as available" basis. The current new replacement product for the AG6601 is the AG7000 Thin Client Terminal. If a Centronics Parllalel Printer Port is needed, the IA8600 Thin Client Terminal is the alternative product.

Overview

The AG6601 Series is a powerful and affordable thin client that delivers the performance and expandability you need. With its dual-video capability built in, the AG6601 enables task workers to work across dual monitors without a splitter cable.

The AG6601's robust platform is ready to handle any task. With a dual core AMD G-Series T48E processor running at 1.4 GHz and a Radeon HD 6250 Graphics Processor it has the performance features needed to handle the most complex VDI environment. Delivering custom or unique peripheral support with standard parallel port, serial port, two PS/2, 4 USB and dual DVI ports with an included VGA adapter and optional internal wireless. The AG6601W has the tools and features required for deployment into the most demanding of virtual environments.

An optional Integrated wireless 802.11b/g/n WI-FIfeature provides mobility and wireless performance that is the best in the thin client market. The AG6661 Wireless Thin Client Terminal It is available with the following models:

Wireless Model Number	Operating System
AG6661L	Linux
AG6661W	WES7 (Windows Embedded 7 Standard)

The AG6601 is a universal hardware platform with universal image support for Windows 7 Embedded (WES7), Windows Embedded Standard (WES), Windows CE 6, or Linux out of the box. Citrix, Microsoft, VMWare, Quest and CLI TermPro Terminal Emulation clients are all standard, as is Internet Explorer. In addition, CLI?s Device Manager software is included with each device, making simple and powerful management a reality. The AG6601 combines strong power, performance and flexibility while maintaining efficient power consumption.

If you are looking for an Ethernet "Dumb Terminal" with a Parallel Port, the AG6601 can be configured to act as a "Dumb Ethernet Terminal" just like the ET2000. They can be configured to automatically boot up to a 5250 or 3270 sign-on screen.

You can see this in the CLI YouTube Video "5250 Autostart MT2301" at the link directly below:

https://www.youtube.com/watch?feature=player_detailpage&v=x8u3ZL4DG5s

This video applies to all CLI CE.NET based Thin Client Terminals with CE4, CE5 or CE6 Operating Systems.

Featured Highlights

Integrated DVI-D and DVI-I video ports (VGA Adapter Included) no video splitter cable needed

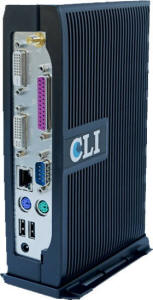

Full Array of Legacy Ports - 1 Parallel, 2 PS/2, 1 Serial, 4 USB

Optional Integrated wireless 802.11b/g/n Wi-Fi^TM

Zero footprint / VESA compatible or vertical mounting options

Flexibility to embed customer selected Windows Apps

Industry-standard Microsoft Windows Embedded Standard 7 (WES7), CE.NET 6, or Embedded Linux

Enhanced video including high resolution wide-screen monitor support

CLI SNMP Administrator Management software is included with every unit. Rapidly deploy, configure, provision and maintain all models of CLI thin clients, wired or wireless.

Optional 122-key Keyboard to provide "no re-training" required migration to Ethernet connectivity from legacy "green screen" Twinax and Coax Terminals.

Click on the image above for a larger picture of the 122-Key Keyboard

Click here for more information on the CLI AG6601 Thin ClientTerminal

Productivity

User productivity is enhanced by eliminating any learning curve and costs associated with PC products. Centralized management of individual units better utilizes support and help desk assets.
Cost Savings

Eliminates 5x94 remote controllers by using an inexpensive network router. You can also eliminate your SNA WAN and use TCP/IP thereby reducing communication costs. Plus, no per seat license cost.

As with all of CLI's Thin client Terminals and Modular Twinax Display Stations, you select from a wide array of keyboard and monitor styles for individual application or user requirements.

Click here for more information on the CLI AG6601 Thin ClientTerminal

For Complete Specifications Download the CLI AG6601 Datasheet

AG6601 / AG6661 Hardware Specifications

Model

AG6601W

AG6601H

AG6601L

Operating System

WES7

CE6

Linux

Processor

AMD G-Series T48E - 1.4 GHz

Memory (min/max)

2gb / 4gb

1gb / 2gb

1gb / 4gb

Flash (Storage)

(min/max)

4gb / 16gb

1gb / 8gb

1gb / 4gb

Network

Auto sense 10/100/1000 BaseT twisted pair Ethernet, RJ 45 connector, Wake On LAN
Optional Integrated 802.11 b/g Wireless (AG6661W, AG6661X, AG666, AG6661L)

Wireless
802.11b/g/n Wi-Fi^TM

Model AG6661W

Wireless CE5 and CE6 Units
Only Available
as Refurbished Units
Call for details

Model AG6661L

I/O Ports

1 Parallel Port, 1 Serial Port (DB9 RS 232C), 4 USB 2.0 Ports, 2 PS/2 Ports (one for Keyboard, one for Mouse), 1 Mic-in jack, 1 Audio Out Jack, 1 RJ45 Ethernet

Video

VX855-based Chrome9 HCM 3D graphics core
High Definition video processor with VMR capability

Audio

Full 16 bit stereo FM synthesis, stereo line out, 8 bit mini microphone line in

Physical Specifications

Dimensions: 1.4 in / 3.5cm (W) x 5.6 in / 14.2cm (D) x 8 in / 20.5cm (H)
Weight: 1.4 lb
VESA 100 compliant mounting holes (monitor mounting kit included)
Built in Kensington Security slot (cable not included)
Optional monitor arm or wall mount adapter
Metal shielded ASB plastic enclosure

Environment

Operating temperature: 0� C to 40� C (32� F to 104� F), Storage temperature: 40� C to 60� C ( 41� F to 140� F)

Relative humidity: 20% to 80% non condensing

Power requirements: 100 240 VAC, 50/60 Hz

Convection cooling, no fan

Regulatory Compliance

FCC Class B ROHS CE Mark UL, T

For Complete Specifications Download the CLI AG6601 Datasheet

AG6601 / AG6661 Software Specifications

Model

AG6601W

AG6601H

AG6601L

Operating System

WES7

CE6

Linux

Protocols

Microsoft RD .x

ICA

X Client

VNC (Remote
Shadowing)

PXE,

Provision Networks

VMware View

Web Browser

Microsoft RD .x
ICA
X Client
VNC (Remote
Shadowing)
PXE,
Provision Networks
VMware View
Web Browser

RDP 5 compatible
ICA
X Client
VNC (Remote
Shadowing)
PXE,
Provision Networks
VMware View
Web Browser

Terminal Emulations

IBM TN5250e, TN3270e, 3151
DEC 100/220/320/420
ANSI BBS, SCO Console
Wyse WY50/60, XDMCP optional SSH/SSL available

Web Browser

Internet Explorer 7
including Flash and Shockwave playback,
PDF file viewer, MSJVM, Windows Media Player, full plugin and Active X support

Windows CE Internet Explorer 7 Web
Browser , including DHTML, P3P, pop-up
window blocker, and locked-down kiosk
mode

Firefox 2, including pop popup blocker,
increased privacy and security, Flash
playback, Adobe PDF viewer, Real Kiosk, Sun JRE/JVM

Email Client

Via local browser or Outlook Express

Via local browser

Via local browser

Other Features

Thin Print available via download
Supports optional Castles Technology EZ100 smart card reader via USB or serial
Special builds available via download (i.e. Kiosk, .Net, IE7 and others)
VNC
Elo and Microtouch touch screen support
Thin Print
Integrated 802.11 b/g wireless
XDMC
VNC

Enhanced printing
capability

Windows X printer
support all
features supported

User installable
printer drivers

LPD/LPR

AS400/iSeries /5250,
Mainframe/3270
Compatibility with
many barcode
printers
Universal printer
support via local
LPD client and host
LPR
SerialD w/ network
to serial port
redirection

AS400/iSeries/5250,
Mainframe/3270
Compatibility with
most barcode
printers
Universal printer
support via local
LPD client and host
LPR
Network (TCP/IP)
print server

Security

Multiple levels of security including user lock-out and multiple built-in user Shell environments

Remote Configuration /
Management

DHCP , SNMP, FTP,
HTTP
CLI SNMP
Administrator
software, including
configuration and
image updates,
shadowing, asset
management,
automatic patch
support

DHCP , SNMP , FTP
CLI SNMP
Administrator
software, including
configuration and
image updates,
shadowing, asset
management,
registry edit, Eboot
for flash disaster
recovery

DHCP , SNMP , FTP
CLI SNMP
Administrator
software, including
configuration and
image updates,
shadowing, asset
management

Server Operating System Compatibility / Support

Microsoft Windows Server 2016, 2012, 2008, 2003, 2000, Windows NT 4.0, Terminal Server Edition; Terminal Services
Citrix Application Delivery Infrastructure including XenApp and
XenDesktop, Access Suite, MetaFrame, WinFrame
Virtual Desktop Infrastructure (VDI) support: vmware VDM*, Provision
VAS*, Ericom WebConnect* and others via browser and JVM (* all
clients not supported on all platforms)
UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS
Microsoft Windows Server 2008, 2003, 2000, Windows NT 4.0, Terminal
Server Edition; Terminal Services
Citrix Application Delivery Infrastructure including XenApp and
XenDesktop, Access Suite, MetaFrame, WinFrame
Virtual Desktop Infrastructure (VDI) support: vmware VDM*, Provision
VAS*, Ericom WebConnect* and others via browser and JVM (* all
clients not supported on all platforms)
UNIX, Linux, IBM OS/400, i5/OS, OS/390, z/OS

Languages

English (US), Spanish (MX), Italian, French, Canadian French, Chinese, Austrian / German, Scandinavian, Spanish, Japanese / Kana, Korean

Network File Transfer Protocols

TCP / and UDP , all XP supported protocols
PXE

Purchase On Line

Warranty Information:

90-Day Twin Data Warranty on AG6601 / MT1500 / MT2300 / MT3500 / All ST Series Logic Modules
1-Year Return-to-Depot Warranty on NEW 122-Key Keyboards
3-Year Acer Warranty on NEW LED Monitors
