ES/TCP Software
IBM? 5250 Emulation over TCP/IP

ES/TCPES/TCP Emulation Software
IBM? 5250 connectivity over TCP/IP

The ES/TCP TN5250e Software has been replaced with OmniTerm/ES.  Please Click Here  and you will be taken to the page for the OmniTerm/ES TN5250e Emulation Software


ES/TCP from NLynx is a simple and straight forward software solution that provides TN5250 display and printer emulation over TCP/IP to your AS/400 and is compatible with both 16- and 32-bit environments. During installation, the ES/TCP software detects the PC operating environment and installs the appropriate emulation, for Windows? 95 and Windows NT™, Windows 3.1 or Windows for Workgroups 3.11 environments

| Information Request Form | Specifications |

  • Works over TCP/IP. No need to have multiple protocols running over your network.

  • Single solution for all Windows operating systems. ES/TCP provides terminal and printer emulation for Windows 3.1, Windows 95, Windows for Workgroups™, and Windows NT?—all in a single solution. NLynx has bundled Emerald Series 32-bit emulation software for Windows 95 and Windows NT and 16-bit for Windows 3.1 and Windows for Workgroups 3.X to provide emulation for any Windows environment. The ES/TCP installer program detects the Windows operating system and automatically installs the appropriate software.

  • Multilanguage support. Localized product for English, French, Italian, German, and Spanish.

  • Printer options. Choose from a variety of popular printers supported by the PC. Up to three printers are supported at any one time, each running independently while another host or PC application is active.

  • Hotspots identify host menu items. Host menu items and function keys can be assigned colors. Employ this aesthetic and intuitive approach to locate them quickly and easily.

  • Keystroke memory and playback (macros). Predefine keystrokes for automated sign-on, repetitive data entry, or unattended operation. Store as many as 2,048 keystrokes in up to 24 keyboard macros.

  • ETU? file transfer support. ETU, an industry standard from NLynx Systems, allows direct file transfer between the PC and System/36, Advanced Series/36, or AS/400.

| Additional Features | Diagram | General |
| Information Request Form | Specifications |

ES/TCP Additional Features

  • Drop-down menu support using mouse button.

  • Keyboard mapping allows easy reconfiguration to support existing keyboards.

  • Advanced printer support includes autorotate and autosize functions.

  • With Application Program Interface (WINHLLAPI), unlimited options are available for simplifying PC operations, including use of internally developed or third-party software.

  • Custom tool bar allows users to create their own easy-to-use buttons for frequently used items, including macros.

  • Print emulation over TCP/IP

Return to Menu

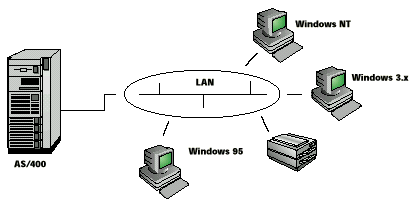

ES/TCP Diagram

ES/TCP Diagram

Return to Menu

ES/TCP Specifications

System Requirements

  • IBM PC (or compatible) with 386, 486, or Pentium? processor

  • 3-1/2" floppy disk drive

  • Hard disk with 5MB space available

  • Minimum of 4MB of memory

  • Windows 7 32-bit, Windows XP32-bit, Windows Vista 32-bit

  • TCP/IP installed on the PC

Return to Menu


The ES/TCP Package:

  • Quick Installation Guide
  • ES/TCP Diskettes

Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user Part Number: ES/TCP 301-9603-01 single-user

Regulatory Approval: FCC, CE


NLynx limited one-year warranty for hardware and 90 days for firmware/software. The NLynx ASSISTSM Program is available to provide extended technical support services. Ask for current rates and terms.

Return to Menu

Related NLynx Products

  • ETU File Transfer Utility?: File transfer utility that resides on the S/3X or AS/400 and provides menu-driven options for transfer and translation of data between the PC and host.

  • NEW!!  USB Twinax: USB attached Twinax Emulation Kit for 64-bit and 32-bit Windows 8, Windows 7, Vista and XP.

  • NEW!!  OmniTerm/ES 5250 Emulation Software -  5250 Emulation Software for TCP/IP TN5250 connectivity.  Also works with ES/PCI Twinax Emulation Card. This is the upgrade for ES/TCP TN5250 Emulation Software.  Works with ETU File Transfer Software

  • ES/PCI PCI EMULATION CARD: 5250 PCI Emulation Card for Windows 8 & 7 (32-bit and 64-bit), 95/98/2000/NT.  Requires OmniTerm/ES 5250 Emulation Software.

  • ES/3XTwin?: DOS emulation software and 5250 adapter

  • ES/Remote™: Software and hardware combination that allows users dial-up remote access to an IBM Midrange System. Works in conjunction withNLynx’s Axcess/400™ Remote Access Unit. Also available for Macintosh and DOS users.

  • ES/Server™: Low-cost gateway, connecting via Twinax to an IBM Midrange to share seven emulation sessions (per adapter) over an Ethernet or Token Ring LAN.

  • MacMidrange?: Macintosh?-to-IBM midrange connectivity products that allow networked or individual Macintosh computers to access IBM S/3X or AS/400 hosts.
